What Is an Oscilloscope and Why Is It Important?

Have you ever stared at a check engine light and wished you could actually see what your car's electrical signals are doing in real time? That's exactly what an oscilloscope car diagnostic tool lets you do — it transforms invisible electrical activity into visual waveforms you can read, interpret, and act on. Unlike a basic code reader that only tells you something went wrong, an oscilloscope shows you why it went wrong. Whether you're chasing down an intermittent misfire or verifying sensor output after a repair, this tool bridges the gap between guessing and knowing. If you've been keeping up with car care basics, adding an oscilloscope to your garage is the next logical step toward truly understanding your vehicle's health.

Modern vehicles rely on dozens of sensors and actuators communicating through electrical signals. A multimeter can tell you voltage at one moment, but an oscilloscope captures the entire story — thousands of data points per second, displayed as a waveform on screen. That waveform reveals timing issues, signal dropouts, and voltage anomalies that no other tool can catch.

In this guide, you'll learn how an oscilloscope works in automotive diagnostics, which type fits your needs, common mistakes to avoid, and real-world scenarios where this tool saves hours of frustration. Whether you're a weekend warrior or someone who handles all your own oil filter changes and maintenance, this knowledge puts you ahead of most shade-tree mechanics.

How an Oscilloscope Car Diagnostic Tool Actually Works

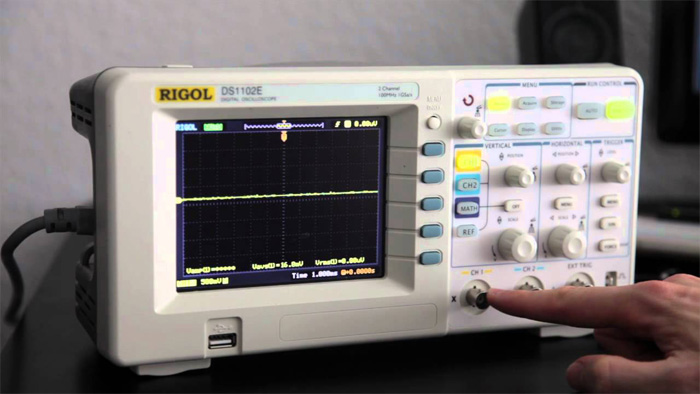

At its core, an oscilloscope car diagnostic tool measures voltage over time and plots it on a graph. The horizontal axis represents time, and the vertical axis represents voltage. When you connect a probe to a sensor wire, the scope captures the electrical signal and draws it as a continuous line — the waveform. This waveform tells you everything about what that circuit is doing.

Think of it like this: a multimeter gives you a snapshot. An oscilloscope gives you a movie. And in automotive diagnostics, the movie is what matters because problems often appear for just milliseconds before disappearing.

Analog vs. Digital Signals in Your Car

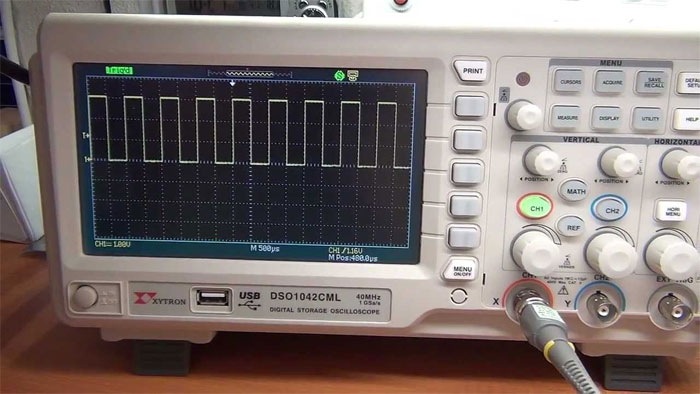

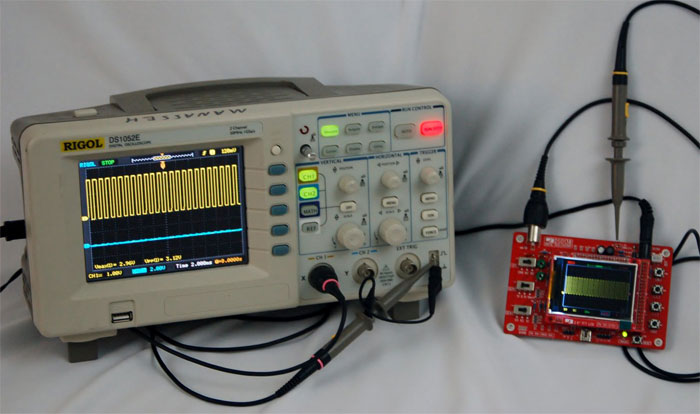

Your vehicle produces two types of signals. Analog signals vary smoothly — like the output from a throttle position sensor that rises gradually as you press the pedal. Digital signals switch between two states — high and low — like the square wave from a crankshaft position sensor. An oscilloscope handles both, showing you the exact shape, frequency, and amplitude of each signal. When that shape deviates from what's expected, you've found your problem.

Reading a Waveform: The Basics

You don't need to memorize complex electrical theory. Focus on three things: amplitude (how tall the wave is — this is your voltage range), frequency (how often the pattern repeats — this relates to RPM or signal speed), and shape (is it clean and smooth, or jagged with dropouts?). A healthy oxygen sensor produces a smooth wave oscillating between 0.1V and 0.9V. A failing one flatlines or shows sluggish transitions. Once you know what "good" looks like, spotting "bad" becomes intuitive.

Pro Tip: Save reference waveforms from your vehicle when everything runs correctly. Comparing a known-good capture against a suspect signal is the fastest way to pinpoint failures.

Choosing the Right Oscilloscope for Automotive Work

Not every oscilloscope suits automotive diagnostics. Lab-grade benchtop units offer features you'll never use on a car, while ultra-cheap hobbyist scopes lack the bandwidth for fast signals. Here's what matters for your garage.

Handheld Units

Handheld automotive oscilloscopes are built for the shop environment. They're battery-powered, rugged, and come with automotive-specific probes. Brands like Autel, Hantek, and Micsig offer units in the $200–$800 range with built-in waveform libraries. These are ideal if you work on cars regularly and need portability. The trade-off is smaller screens and fewer channels compared to PC-based options.

PC-Based Oscilloscopes

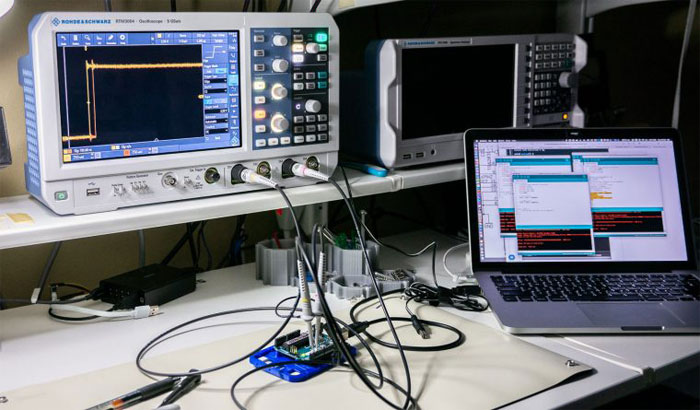

PC-based scopes like the PicoScope connect to your laptop via USB and use software on your computer for display and analysis. They offer larger screens, easier data storage, and often come with extensive automotive waveform databases. The oscilloscope technology behind them is identical to standalone units — the difference is just where the processing and display happen. For most DIY mechanics, a 2-channel PC-based scope between $300–$600 covers everything you'll encounter.

Real-World Diagnostic Scenarios

Theory is useful, but you're here to fix cars. Let's look at situations where an oscilloscope car diagnostic tool earns its keep by revealing problems that no other tool can find.

Tracking Down Intermittent Misfires

Your engine throws a P0300 random misfire code, but it only happens when the engine is warm and under load. A code reader tells you nothing more. With an oscilloscope, you clip onto the primary ignition circuit and watch the firing pattern in real time. You spot one cylinder with a slightly shorter dwell time — barely noticeable, but enough to cause a weak spark under load. The culprit? A failing ignition coil with an internal short that only appears when heat expands the windings. Without a scope, you'd be swapping parts blindly.

This scenario is similar to tracking down electrical shorts in a car — the problem exists, but you need the right tool to see exactly where it lives.

Sensor Output Verification

After replacing a camshaft position sensor, your engine still runs rough. A multimeter shows voltage within spec. But the oscilloscope reveals the signal's rising edge is too slow — taking 3 microseconds instead of the expected 1. The ECU (engine control unit) misreads the timing, and combustion suffers. The fix? A wiring issue at the connector was adding resistance. The scope showed what the multimeter couldn't: signal quality matters as much as signal presence.

Oscilloscope Myths That Hold You Back

Plenty of misconceptions keep capable DIYers from picking up a scope. Let's clear them out.

It's Too Expensive for DIYers

A decade ago, automotive oscilloscopes cost thousands. Today, capable 2-channel units start around $200. Compare that to the cost of one misdiagnosed repair where you replaced three good parts before finding the actual problem. The scope pays for itself the first time it saves you from a $400 unnecessary part swap. If you already invest in tools for tasks like using a portable jump starter or maintaining your filters, a scope fits naturally into your toolkit.

You Need an Engineering Degree

You don't. Automotive waveform analysis is pattern recognition. You learn what a healthy crankshaft position sensor waveform looks like, and then you compare everything against that baseline. Most PC-based scopes include reference libraries with known-good waveforms for common vehicles. Within a weekend of practice, you can diagnose ignition, injection, and sensor circuits confidently. The learning curve is comparable to reading a scan tool — initially intimidating, then second nature.

Warning: Never probe high-voltage secondary ignition circuits (coil-to-plug wires) with a standard oscilloscope probe. Use an inductive pickup designed for ignition testing — direct contact with 40,000+ volts destroys equipment and creates serious safety hazards.

Common Mistakes When Using an Oscilloscope

Even with the right tool, technique matters. These mistakes are the ones that trip up beginners and lead to false conclusions.

Improper Grounding

The most common oscilloscope mistake is bad grounding. Your probe's ground clip must connect to a solid chassis or engine ground near the circuit you're testing. A ground point far from the measurement introduces noise that makes waveforms look abnormal even when the circuit is healthy. Always ground within 12 inches of your test point. If you see excessive noise on every channel, check your ground first — it's the problem 80% of the time.

Wrong Time Base Settings

The time base (horizontal scale) determines how much time each screen division represents. Set it too fast, and you see meaningless fragments. Set it too slow, and the waveform compresses into an unreadable blob. For crankshaft position sensors at idle, start around 20ms per division. For fuel injectors, try 5ms per division. The key is adjusting until you see 2–3 complete cycles on screen — that gives you enough context to spot anomalies while maintaining detail.

When You Need an Oscilloscope (and When You Don't)

An oscilloscope is powerful, but it's not the right tool for every job. Knowing when to reach for it — and when a simpler tool suffices — saves you time and prevents overcomplicating basic repairs.

Situations That Demand a Scope

• Intermittent electrical faults that don't throw consistent codes
• Signal quality issues where voltage reads correct but the waveform shape is wrong
• Timing verification between related signals (cam/crank correlation)
• Fuel injector balance testing to identify weak or stuck injectors
• CAN bus communication issues where data packets corrupt intermittently

When Simpler Tools Work Fine

For straightforward tasks like checking battery voltage, verifying a fuse, or reading trouble codes, a multimeter or basic scan tool does the job faster. If your cigarette lighter stopped working, you need a fuse check and a multimeter — not an oscilloscope. The rule is simple: if the problem is static (present all the time and measurable at any instant), a multimeter works. If the problem is dynamic (appears and disappears, depends on timing, or involves signal shape), you need a scope.

Advantages and Limitations

Let's be honest about what this oscilloscope car diagnostic tool brings to your garage — and where its limits lie.

Quick Wins for Beginners

Start with these tests to build confidence fast. Ignition primary waveform testing is the easiest entry point — connect one probe to the negative terminal of any coil, and you immediately see dwell time, spark duration, and firing voltage. Any variation between cylinders points directly to a problem. Next, try oxygen sensor testing — the 0.1–0.9V oscillation is easy to interpret and immediately tells you if the sensor is lazy or dead.

Battery and charging system analysis is another quick win. With the scope on the battery terminals while the engine runs, you see alternator ripple. Excessive ripple (more than 500mV peak-to-peak) indicates failing diodes — something a voltmeter reading of "14.2V" completely misses. This kind of preventive check pairs well with regular maintenance habits like knowing how often to start your car during storage periods.

Honest Limitations

An oscilloscope won't interpret results for you. It shows data — you must understand what you're looking at. It also requires physical access to wiring, which can be challenging on modern vehicles with buried connectors and sealed harnesses. Some signals require specialized probes (current clamps, high-voltage attenuators) that add cost. And for purely mechanical problems — worn bushings, loose bolts, damaged body panels — no amount of electrical testing helps. A scope complements your toolbox; it doesn't replace mechanical diagnosis.

Frequently Asked Questions

Key Takeaways

• An oscilloscope car diagnostic tool captures electrical signals over time, revealing intermittent faults and signal quality issues that multimeters and code readers completely miss.
• Capable automotive oscilloscopes start around $200, and the learning curve is manageable — focus on pattern recognition rather than electrical theory.
• Always ground your probe within 12 inches of the test point, set the time base to show 2–3 complete waveform cycles, and never probe high-voltage secondary ignition without proper equipment.
• Use a scan tool to identify the problem system, then use the oscilloscope to pinpoint exactly where the failure occurs within that circuit.
