Can You Put High Beam Bulbs in Low Beam?

Ever stared at a burned-out headlight and wondered whether the high beam bulb sitting on your shelf could serve as a quick substitute? Putting high beam bulbs in low beam sockets is a question every hands-on driver eventually asks — and the short answer is: in most vehicles, no, and the reasons matter far more than you might expect.

Headlight bulbs are precision-engineered for specific beam patterns, focal distances, and socket configurations. Forcing the wrong bulb into the wrong housing doesn't just degrade your visibility — it can blind oncoming drivers, trigger electrical faults, or land you a failed inspection. Whether your vehicle runs halogen, HID, or LED lighting, the design differences between high and low beam assemblies are fundamental, not cosmetic.

This guide from the automotive section walks through exactly what separates these two bulb types, what happens in real-world swap attempts, and how to make a correct replacement that's safe, legal, and built to last.

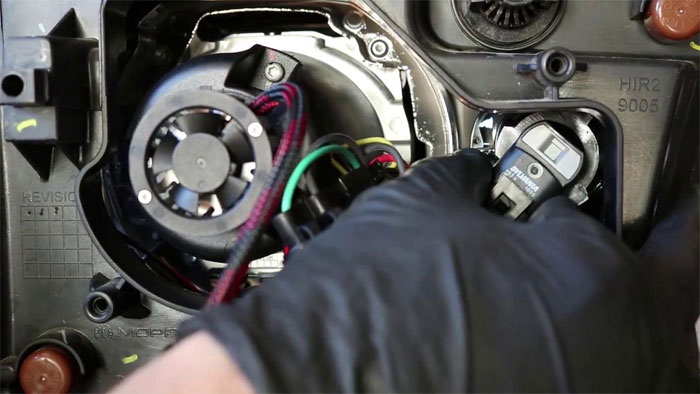

High Beam vs. Low Beam Bulbs: Key Differences You Need to Know

Before you can understand why installing the wrong bulb causes problems, you need to know what makes these two systems fundamentally different. It's not just about brightness — it's about optics, geometry, and electrical design working together.

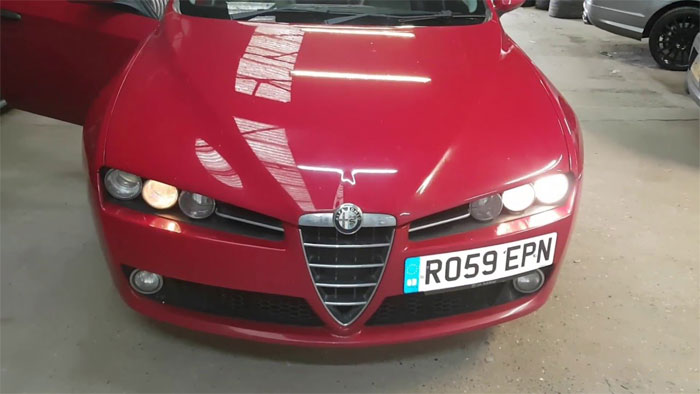

Beam Pattern and Optics

Low beam headlights project a controlled, asymmetric beam that illuminates the road without blinding oncoming traffic. The filament sits at a precise position inside a shaped reflector housing, creating a sharp horizontal cutoff at the top of the beam — angled slightly upward on the passenger side to improve road coverage without causing glare.

High beams throw light in a wide, centered, uncontrolled pattern. No cutoff. Maximum range. The filament sits at a different focal point, and the optics are calibrated for that geometry. Install a high beam bulb in a low beam housing and the light scatters unpredictably — you get less usable illumination, not more.

• Low beam: asymmetric pattern, controlled horizontal cutoff
• High beam: wide, centered, no cutoff restriction
• Both depend on precise filament-to-reflector alignment — a few millimeters of offset ruins the output

Socket Types and Physical Fit

Most vehicles use dedicated sockets for each function. The table below covers the most common configurations:

Notice that H7 appears in both low and high beam columns. On certain vehicles, the same base type is used for both, but the internal filament position differs. An H7 high beam variant may physically lock into the low beam socket — the tab aligns — but the optics will be miscalibrated from the moment you close the hood.

Pro Tip: Your owner's manual or the label printed directly on the headlight housing gives you the exact bulb number in under 30 seconds — never guess when the answer is already written on the car.

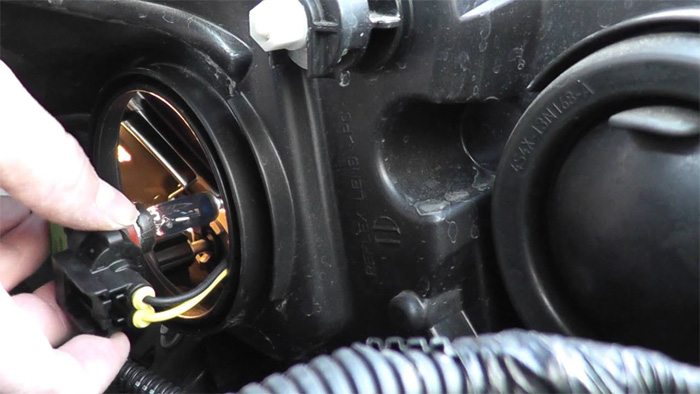

What Really Happens When You Use High Beam Bulbs in Low Beam Sockets

This is where theory meets reality. Drivers who attempt to run high beam bulbs in low beam housings encounter problems that range from annoying to genuinely dangerous — and the damage isn't always immediately visible.

Safety and Legal Risks

The consequences of a mismatched bulb stack up fast:

• Glare hazard: Without a proper beam cutoff, light strikes oncoming drivers at eye level. A split-second of glare at highway speed is enough to cause an accident.
• Reduced road illumination: Counterintuitively, a high beam bulb in a low beam housing often delivers less usable light on the road surface — the reflector scatters output instead of focusing it.
• Inspection failure: Most states require headlights to meet NHTSA headlamp standards. A misaligned beam pattern will fail a beam aim test, and you'll be back in the shop.
• Heat damage: A 65W high beam halogen running in a housing rated for 55W generates excess heat. Over time, that warps the reflector bowl, melts plastic socket housings, and degrades wire insulation.

Electrical damage from overloaded wiring is an expensive follow-on problem — comparable in scope and cost to a full tail light wiring repair. Don't let a $15 bulb decision create a $300 repair.

Common Swap Scenarios

Three situations come up repeatedly when drivers attempt this workaround:

1. H9 into H11 housing: The H9 physically locks in if you shave or break the anti-rotation tab. Output is higher, but the beam cutoff degrades and thermal load increases. Some drivers accept this tradeoff — most vehicle inspectors won't.
2. H4 dual-filament bulb misoriented: H4 bulbs house both low and high beam filaments. Installed rotated even slightly, the low beam filament sits off-axis from the focal point. The result is scattered, glare-producing light in low beam mode.
3. HID retrofit into a reflector housing: Installing HID bulbs where they don't belong — in a non-projector reflector housing — creates severe, uncontrolled glare. This is the most dangerous configuration on this list, and it's illegal in most jurisdictions.

If you're dealing with other lighting faults alongside this one, the diagnostic framework behind why brake lights work but tail lights don't applies the same methodical troubleshooting logic to your full lighting circuit.

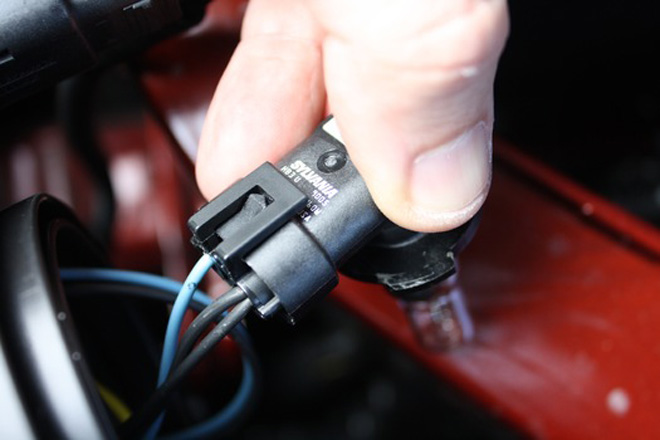

Warning: Never break an anti-rotation tab to force a mismatched bulb into a socket — that tab exists solely to ensure correct filament-to-reflector alignment, and removing it defeats the entire optical design of the housing.

How to Replace Low Beam Bulbs Correctly, Step by Step

Replacing your low beam with the right bulb is a job most owners can complete in under 20 minutes. The entire outcome hinges on one decision made before you open the hood: getting the correct part number.

Tools and Preparation

Gather these before you start:

• Owner's manual or verified part lookup for your exact year, make, and model
• Correct replacement bulb — confirm the part number, don't estimate
• Nitrile gloves — never touch halogen glass with bare skin; skin oils create hot spots that crack the envelope under heat
• Flathead screwdriver for retaining clips on some housings
• Flashlight for working in tight engine bays

Just like knowing the exact specification before replacing your car's spark plugs, nailing the part number before you pull anything apart saves a wasted trip to the parts counter.

Installation Steps

1. Turn off the vehicle and let the engine cool. On compact engine bays, headlight housings sit uncomfortably close to heat sources.
2. Open the hood and locate the rear of the headlight housing. On most modern vehicles, bulbs are accessed from behind the housing inside the engine bay — no need to remove the full assembly.
3. Disconnect the wiring harness. Press the locking tab and pull the connector straight back. Angled pulling bends the pins.
4. Remove the retaining ring, wire clip, or twist-lock. Photograph the mechanism before removal if you're unfamiliar with your specific housing design.
5. Pull the old bulb straight out. If it's been seated for years, expect firm resistance — steady pressure, not a twist.
6. Install the new bulb without touching the glass. Align the locating tabs — there is only one correct orientation. Don't force it.
7. Reconnect the harness and test both low and high beam before closing the hood. Confirm function before you button everything up.

Choosing Headlight Bulbs for Long-Term Performance

Selecting the correct bulb type for your low beam is a long-term decision that affects safety, maintenance frequency, and total cost over your vehicle's life. Get this right once and you won't be back under the hood for years.

Halogen, HID, or LED?

Each technology has a distinct performance profile for low beam use:

• Halogen: Lowest upfront cost, easiest DIY replacement, available everywhere. Lifespan: 450–1,000 hours. The right call for owners who want simplicity and instant availability.
• HID (Xenon): Dramatically brighter than halogen, with a 2,000+ hour lifespan. Requires a projector housing for safe road use — retrofitting HID into a reflector-based low beam creates dangerous, diffuse glare. Don't retrofit.
• LED: Longest lifespan (25,000–50,000 hours), lowest power draw, best thermal efficiency. Quality matters enormously here — buy kits engineered specifically for your housing type, not generic high-lumen bargain units that scatter light unpredictably.

If you're pairing a headlight upgrade with improved front-facing visibility technology, the case for running a dash cam becomes even stronger at night — better lights and better documentation work together.

Maintenance and Lifespan Tips

Getting maximum service life from your low beam bulbs comes down to consistent habits:

• Replace bulbs in pairs — when one fails, the other is statistically close behind
• Restore oxidized headlight lenses — yellowed plastic can reduce light output by up to 80%, regardless of bulb quality
• Check beam aim annually — even the correct bulb installed correctly can drift out of alignment from normal road vibration
• Inspect the wiring connector at each bulb change — corroded pins cause voltage drops that shorten bulb life and create intermittent failures

Insider Note: If a new bulb fails within weeks of installation, the culprit is almost always a corroded or loose connector delivering inconsistent voltage — not a defective bulb. Clean or replace the connector before you install another one.

Keeping your lighting in top condition is part of a broader maintenance mindset. If you're already diligent about tasks like cleaning and conditioning your leather car seats, you're already thinking about vehicle care the right way — stay ahead of small problems before they compound into expensive ones.

Frequently Asked Questions

Key Takeaways

• High beam bulbs are not designed for low beam sockets — differences in filament position, beam pattern, and wattage create both safety hazards and potential heat damage to your vehicle's housing and wiring.
• Even when a high beam bulb physically fits a low beam socket, the optical miscalibration eliminates the controlled cutoff line and produces dangerous glare for oncoming drivers.
• Always confirm your exact replacement part number from your owner's manual or housing label before purchasing — guessing costs more in the long run than the 30 seconds it takes to verify.
• Replace bulbs in pairs, restore oxidized lenses, and inspect connectors at each change to maximize bulb lifespan and keep your low beams performing correctly between replacements.
